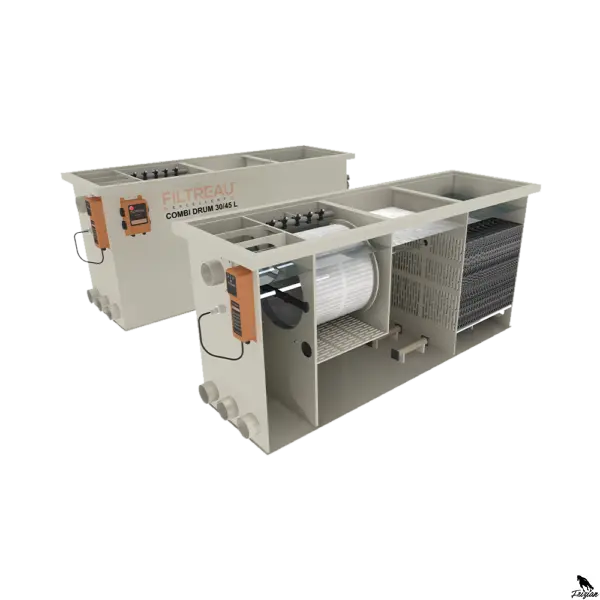

COMBI DRUM 30/45L

Filters are supplied without mats and Hel-X. These are optionally available.

Dimensions
length: 2254mm

width: 700mm

height: 1005mm

130 Nm / 60 watts 220 volts Motor

3 x 110 mm Inlet in (MM)

Ø 500 x 400 mm Drum

4 x 50 x 300 mm Air inlet

2 x 110 mm Outlet in (MM)

Stainless steel 5 bar / 600 watts 220 volts Flushing pump (internal)

100 m3 Pond volume m3

50 m3 Max. Flow

1 x 80 watts H-O
Built-in UV-C unit

SPG XL drive motor
Our industrial SPG drive motor provides a torque of 130 Nm. The unit of torque (force x arm) is Newton meters. It is used, among other things, to indicate the pulling force of the motor. These drive motors are designed exclusively for our drum filters! The motors are mounted on the filter with a double seal to prevent leakage and deformation.

UV-C HO 80 watts
The new stainless steel Filtreau UNOX immersion UV-C module contributes to clean pond water. The clever design and high-quality materials produce high UV-C radiation with a wavelength of exactly 253.7 nm. This high dose of radiation destroys virtually all bacteria, viruses and even fungi. Added chemicals such as chlorine can be reduced by up to 80 percent, resulting in cleaner, healthier water!

Stainless steel float
Due to impurities, the water in the drum cannot flow through the filter mesh as easily. This is signaled by a float switch that triggers the rinsing function. This involves the drum rotating. The nozzles then spray water from the outside against the rotating drum.
