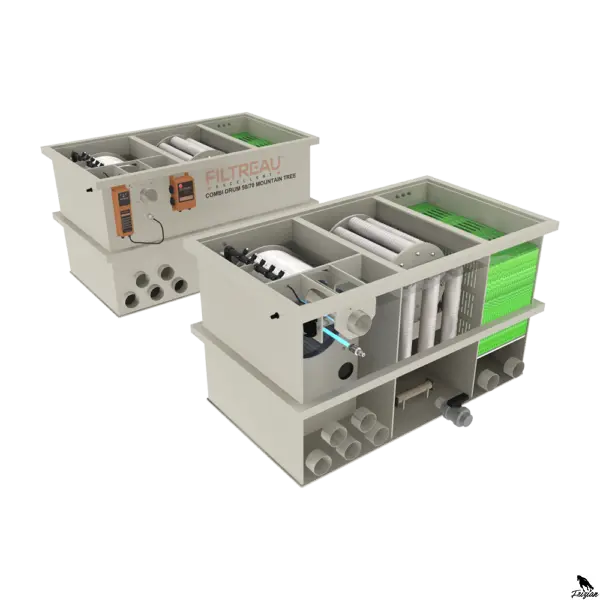

COMBI DRUM 50/70 Mountain Tree

Filtreau drum filtration is a modern and highly efficient filtration system designed for garden ponds, koi ponds, biotopes and swimming ponds. Thanks to precise mechanical water cleaning, it removes even very fine impurities before they burden the biological filtration.

How the Filtreau drum filtration works:
Water flows through a rotating filter drum with fine perforations that captures solid impurities, food residues, algae or sludge. When clogged, the drum automatically starts to self-clean, during which impurities are rinsed out of the filter. This process takes place fully automatically and without the need for manual intervention.

Main advantages of Filtreau drum filtration:

- High efficiency of mechanical filtration - captures even micro-impurities

- Automatic flushing - minimal maintenance

- Clean and clear water throughout the season

- Ideal solution for koi ponds and large volumes of water

- High-quality workmanship and long service life

Filtreau drum filters significantly reduce the organic load of water, thereby improving the efficiency of biological filtration and the overall stability of the pond ecosystem. They are designed for demanding breeders who require reliable performance, automation and long-term water quality.

Technical specifications

2 x 130 Nm / 60 W 220 V - Motor

5 x 110 mm - Inlet (MM)
Ø 500 x 400 mm - Drum diameter

2 x 50 x 300 mm - Air inlet

2 x 110 mm Outlet (MM)
RVS 5 bar / 750 W 220 V Flushing pump (internal)
Included: Control unit
100 m3 - Pond volume m3
50 m3 - Max. flow
1 x 80 W H-O - Built-in UV-C unit

Dimensions:

Length: 1773mm

Width: 1163mm

Height: 1005mm

These Filtreau Excellent combination drum filters are supplied with Mountain Tree filter media.

Mountain Tree
Lotus Root Bacteria House II
The Lotus Root Bacteria House II from Mountain Tree is an advanced filter medium that supports a healthy aquatic ecosystem. Its special lotus root structure and nanopores provide a large surface area for beneficial bacteria to break down nitrates and nitrites. The patented spiral shape and mineral filtration ensure purified and mineralized water for optimal growth and water quality.

Mountain Tree
Spiral Filter Mat
The Mountain Tree spiral filter mat is an innovative filter medium with a patented 3D spiral structure for effective biofiltration and bacterial growth. Its optimal thickness ensures good oxygen circulation and a low risk of clogging. The mat is easy to cut to size and is UV resistant, making it ideal for durable and effective pond filtration.

Mountain Tree
Rotating drum
In the Filtreau Excellent filters, the Mountain Tree Lotus Root II bacteria house is not located stationary or upright in the filter, but in a rotating drum. This ensures maximum biofiltration and fully exploits the benefits of the Mountain Tree. Thanks to this advanced technology, your pond remains clean and healthy, even with a large number of koi.
